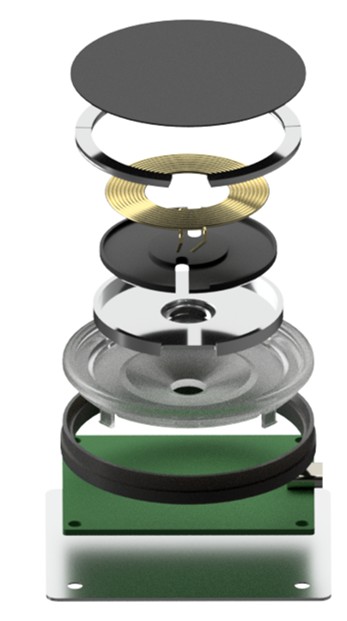

PTM-1000K (WPC 2.2 / MPP)

PTM-1000K
(WPC 2.2 / MPP)

PTM-1000K (WPC 2.2 / MPP)
√ Up to 25W Fast Wireless Charging with MagSafe Compatibility
√ Proven Application Experience with Global Automotive OEMs and Tier-1 Suppliers
√ Designed for Automotive and Commercial Applications
√ Optimized for Casino Gaming Environments
√ Enhances User Convenience, Engagement, and Dwell Time
√ Advanced Thermal Management for Reduced Heat Generation
√ Improved Charging Performance with Faster and More Stable Charging Speeds
√ Premium Wireless Charging Solution for Automotive and Commercial Applicationss
Back to list

Specifications

Input Voltage (Normal) 1) 4.6~5.4V : max 5W
2) 8.6~9.4 : max 15W
3) 11.6~19.4V : max 25W
Input Current (Max) MAX. 3A
Input Source 1) DC Input
2) USB-QC Input
3) USB-PD Input
Output Power 1) BPP : 5W
2) MPP : 15W / 25W
3) PPDE : 7.5W ~ 10W
Operating Frequency 1) BPP : 128khz
2) MPP : 360khz
Charging Area 1) X & Y : 8 mm radius (BPP/EPP)
2) X & Y & Z : 2mm radius (MPP)
Efficiency 1) 70% (BPP/EPP),
2) 75% (MPP)
@ Charging only
Operating Temp. Range -30°C ~ +60°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight TBD

Coil Specification

Inductance 7.41uH ± 10%
D.C. Resistance Same or less than 100m Ω
Dimension TBD

Application Cases

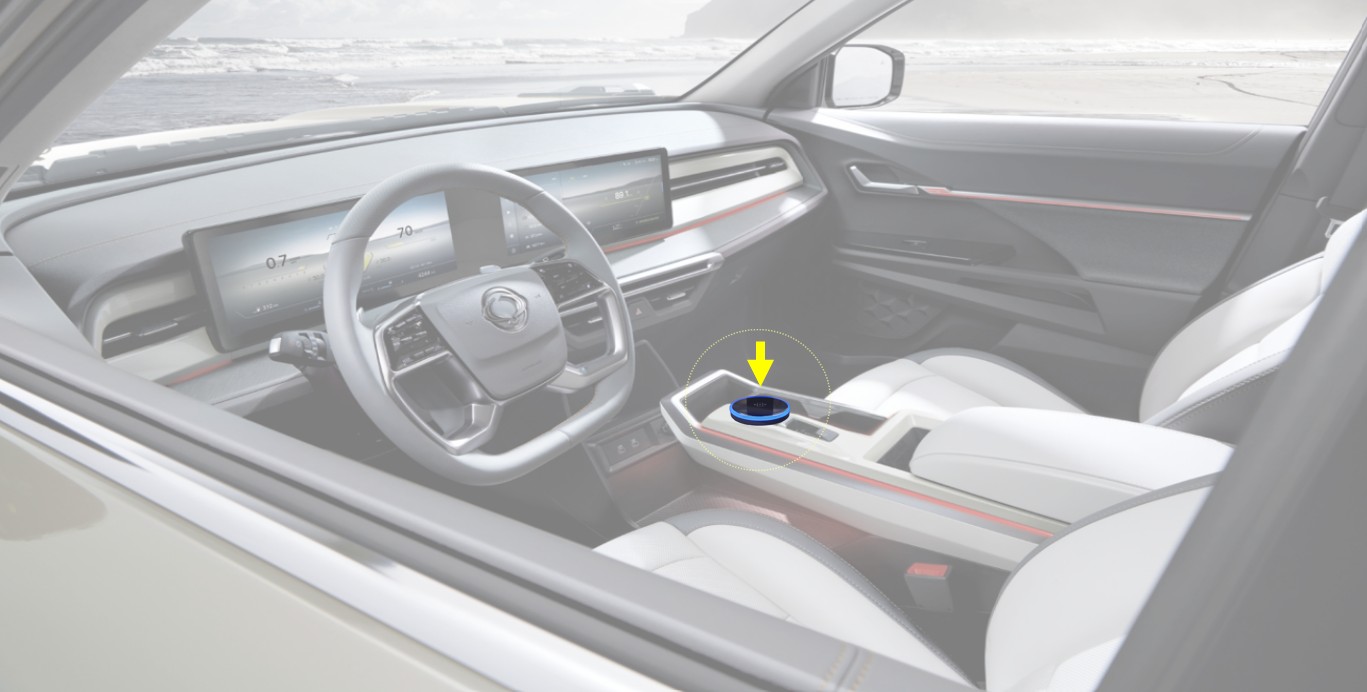

CASE 1 High-Speed Wireless Charging for Vehicles
  • √ Designed for Automotive and Commercial Applications
  • √ MPP 25W Superfast Charging with MagSafe Features

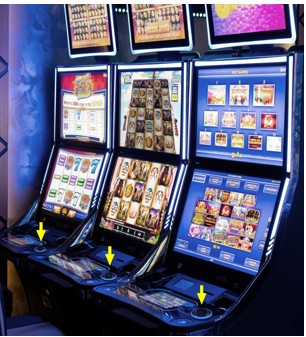

CASE 2 Casino Gaming
  • √ Increase Casino Game Stay Time and Immersion
  • √ Promote sustained use within a gaming context
  • √ MPP 25W Superfast Charging with MagSafe Features

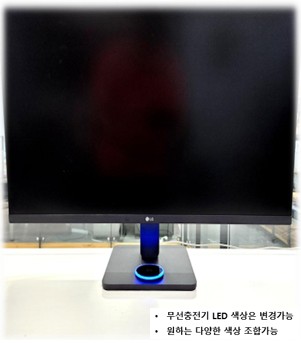

CASE 3 Superfast Wireless Charger
  • √ Continuous Use of Computers, Including Work and PC Rooms
  • √ MPP 25W Superfast Charging with MagSafe Features

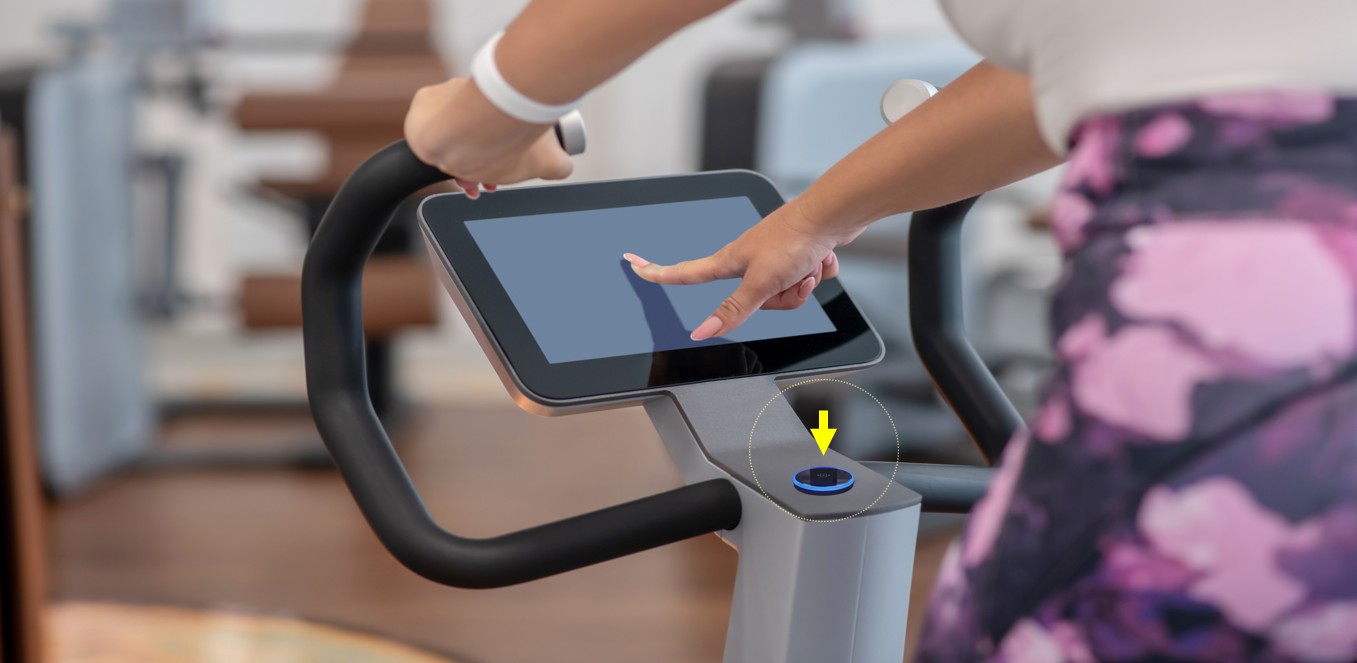

CASE 4 Wireless Charging for Health Equipment - Fastest in the Market
  • √ Application of Fitness Equipment (Stretching and Health Care)
  • √ MPP 25W Superfast Charging with MagSafe Features

Details

√ Up to 25W Fast Wireless Charging with MagSafe Compatibility

√ Proven Application Experience with Global Automotive OEMs and Tier-1 Suppliers

√ Designed for Automotive and Commercial Applications

√ Optimized for Casino Gaming Environments

√ Enhances User Convenience, Engagement, and Dwell Time

√ Advanced Thermal Management for Reduced Heat Generation

√ Improved Charging Performance with Faster and More Stable Charging Speeds

√ Premium Wireless Charging Solution for Automotive and Commercial Applicationss
