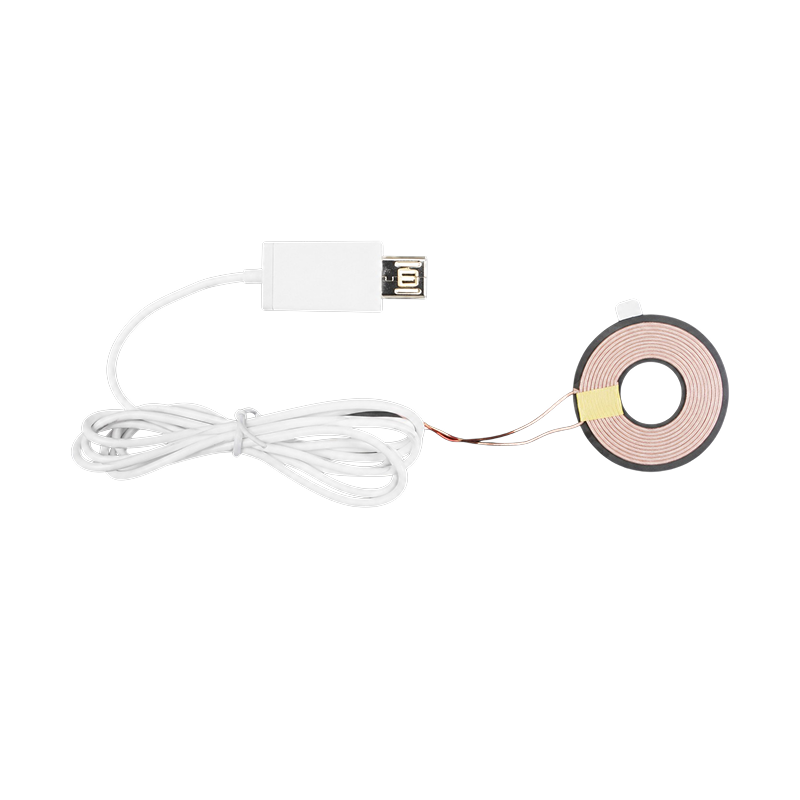

PTM-510K (WPC 1.2.4 / BPP)

PTM-510K
(WPC 1.2.4 / BPP)

PTM-510K (WPC 1.2.4 / BPP)
√ Supports up to 5W Wireless Charging
√ USB-Type Wireless Charging Module Solution
√ PCB and Coil Separation Design for Enhanced Flexibility
√ Lower Surface Temperature than Competitive Products
√ Improved Thermal Performance for Faster and More Stable Charging
√ Optimized Wireless Charging Efficiency with Reduced Heat Generation
Back to list

Specifications

Input Voltage (Normal) 5V DC
Input Current (Max) 2.0A
Input Source USB Type-A
Output Power 5W (WPC)
Operating Frequency 112kHz ~ 121kHz
Charging Area X : -8mm ~ +8mm
Y : -8mm ~ +8mm
Z : 7mm
*Condition : With TI Rx Chip applied Board
Efficiency More than 65% (Max)
Operating Temp. Range -30°C ~ +45°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight Cable Length : 1.36m
USB Size : 47mm × 20mm × 6.5mm
Coil Ass’y Size : 47Φ, 2T
Weight : 30g

Coil Specification

Inductance 8.2uH ± 10% (f=100 kHz 1.0Vms)
D.C. Resistance Max 0.08 Ω
Dimension Refer to the drawing

Application Cases

CASE 1 USB Type Wireless Charging Module
  • √ Supports 5W Wireless Charging
  • √ USB-Type Wireless Charging Module
  • √ Separated PCB and Coil Design
  • √ Lower Surface Temperature Compared to Conventional Solutions → Enables Faster Charging Performance

Details

√ Supports up to 5W Wireless Charging

√ USB-Type Wireless Charging Module Solution

√ PCB and Coil Separation Design for Enhanced Flexibility

√ Lower Surface Temperature than Competitive Products

√ Improved Thermal Performance for Faster and More Stable Charging

√ Optimized Wireless Charging Efficiency with Reduced Heat Generation
