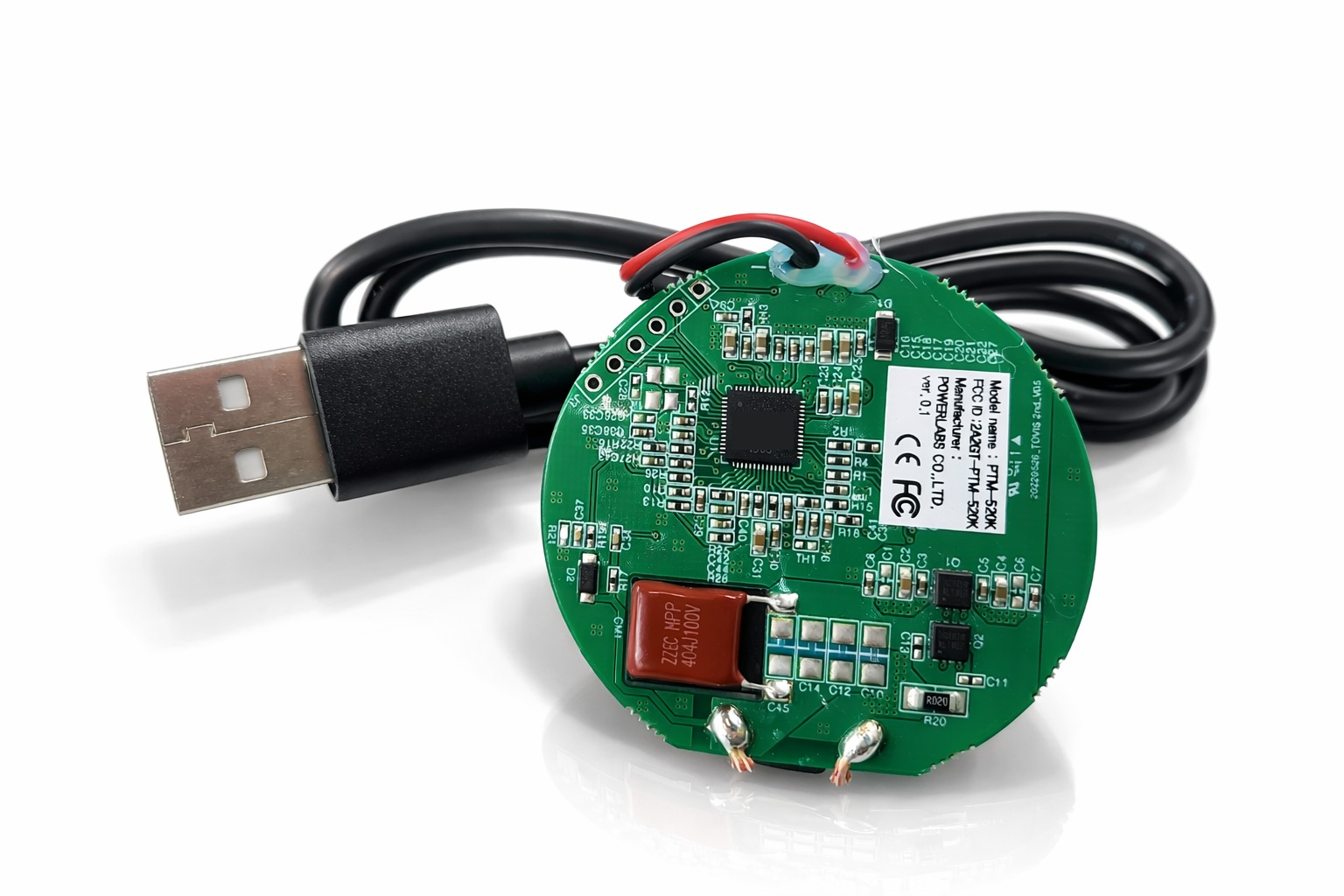

PTM-520K (WPC 1.2.4 / BPP)

PTM-520K
(WPC 1.2.4 / BPP)

PTM-520K (WPC 1.2.4 / BPP)
√ Supports up to 5W Wireless Charging
√ Qi Certified for Reliable Wireless Charging Performance
√ Compact USB-Type Wireless Charging Module
√ KC Certified
√ Built-in Foreign Object Detection (FOD) for Enhanced Safety
√ Built-in Over-Temperature Protection (OTP)
√ Built-in Over-Voltage Protection (OVP)
√ Built-in Output Over-Current Protection (OCP)
√ Comprehensive Protection Features for Safe and Stable Operatio
Back to list

Specifications

Input Voltage (Normal) 5.0V
Input Current (Max) 2.0A
Input Source -
Output Power 5W (WPC)
Operating Frequency 110kHz ~ 205kHz
Charging Area X : -8mm ~ +8mm
Y : -8mm ~ +8mm
Z : +5mm ~ +10mm
*Condition : With TI Rx Chip applied Board
Efficiency More than 70% (Max)
Operating Temp. Range -30°C ~ +45°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight Cable Length : 0.6m
PCB Size : 47mm x 44.5mm x 1mm
Coil Ass’y Size : 47Φ, 2T
Weight : 34g

Coil Specification

Inductance 6.3uH ± 10% (f=100 kHz 1.0Vms)
D.C. Resistance Max 0.08 Ω
Dimension Refer to the drawing

Application Cases

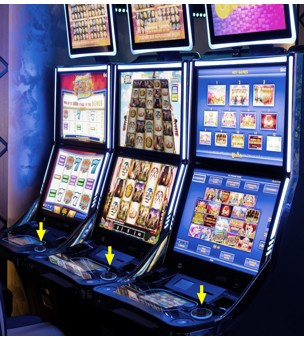

CASE 1 Casino Gaming
  • √ Increase Casino Game Stay Time and Immersion
  • √ Promote sustained use within the gaming environment
  • √ Wireless Charging Support Up to 15W

Details

√ Supports up to 5W Wireless Charging

√ Qi Certified for Reliable Wireless Charging Performance

√ Compact USB-Type Wireless Charging Module

√ KC Certified

√ Built-in Foreign Object Detection (FOD) for Enhanced Safety

√ Built-in Over-Temperature Protection (OTP)

√ Built-in Over-Voltage Protection (OVP)

√ Built-in Output Over-Current Protection (OCP)

√ Comprehensive Protection Features for Safe and Stable Operatio
