Products
Based on wireless communication and electrical & electronic technologies, we develop wired and wireless charging modules and power transmission control solutions.

Product

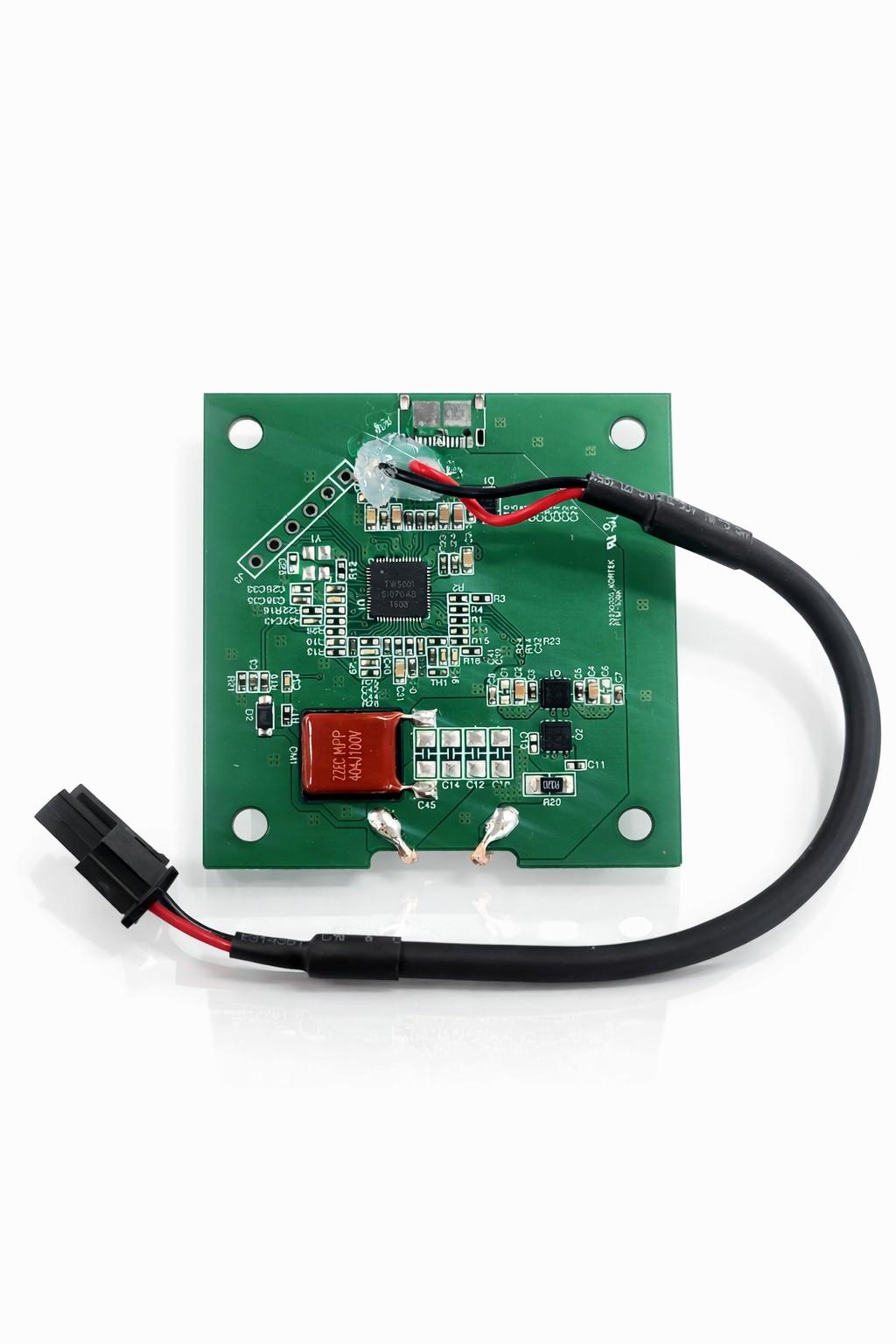

PTM-530K (WPC 1.2.4 / BPP)

PTM-530K
(WPC 1.2.4 / BPP)

PTM-530K (WPC 1.2.4 / BPP)
√ Supports up to 5W Wireless Charging
√ Qi Certified for Reliable Wireless Charging Performance
√ KC Certified
√ Built-in Foreign Object Detection (FOD) for Enhanced Safety
√ Built-in Over-Temperature Protection (OTP)
√ Built-in Over-Voltage Protection (OVP)
√ Built-in Output Over-Current Protection (OCP)
√ Comprehensive Safety and Protection Features for Stable Operation
Back to list

Specifications

Input Voltage (Normal) 5.0V
Input Current (Max) 2.0A
Input Source -
Output Power 5W (WPC)
Operating Frequency 110kHz ~ 205kHz
Charging Area X : -8mm ~ +8mm
Y : -8mm ~ +8mm
Z : +5mm ~ +10mm
*Condition : With TI Rx Chip applied Board
Efficiency More than 70% (Max)
Operating Temp. Range -30°C ~ +45°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight PCB Size : 52mm x 50mm x 7.1mm
Coil Ass’y Size : 47Φ, 2T
Weight : 23g

Coil Specification

Inductance 6.3uH ± 10% (f=100 kHz 1.0Vms)
D.C. Resistance Max 0.08 Ω
Dimension Refer to the drawing

Application Cases

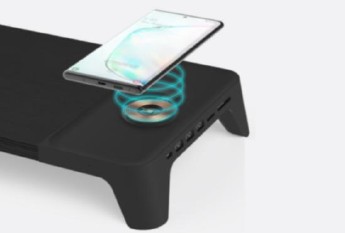

CASE 1 Monitor Stand
  • √ BROS & COMPANY
  • √ Wireless Charging Module for Monitor Stand
  • √ Transmitter Solution Development

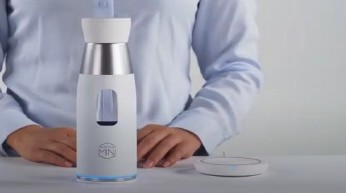

CASE 2 HYDROGEN-WATER GENERATOR
  • √ DAGAGA KOREA
  • √ Wireless Charging Module for Hydrogen Water Generator
  • √ Transmitter/Receiver Solution Development
CASE 3 Vehicle Wireless Charging
  • √ HSM Tech Co., Ltd
  • √ Vehicle Wireless Charging Module
  • √ Qi Certified

Details

√ Supports up to 5W Wireless Charging

√ Qi Certified for Reliable Wireless Charging Performance

√ KC Certified

√ Built-in Foreign Object Detection (FOD) for Enhanced Safety

√ Built-in Over-Temperature Protection (OTP)

√ Built-in Over-Voltage Protection (OVP)

√ Built-in Output Over-Current Protection (OCP)

√ Comprehensive Safety and Protection Features for Stable Operation
